 Oil smoke II

Redesign of the prooven Oil smoke I
- 4 heating elements
- New high power heaters -> total power about 50W
- Enormous smoke volume generation (see picture above)
- Simpler design (no separate oil reservoir)
- Adaptable to model space conditions
  (f.e.: One/two smoke outlet, horizontally/vertically outlet,
  and operation voltage)
- Plastic and metal version in two sizes available:
  Plastic transparent:
  Standard:
120 x 65 x 52 mm         Large: 150 x 80 x 62 mm
  Metal:
  Standard:
115 x 65 x 75 mm         Large: 115 x 90 x 75 mm

- Available fully pre built (RtR), as a complete kit or as a
  “base” kit -> see details below.

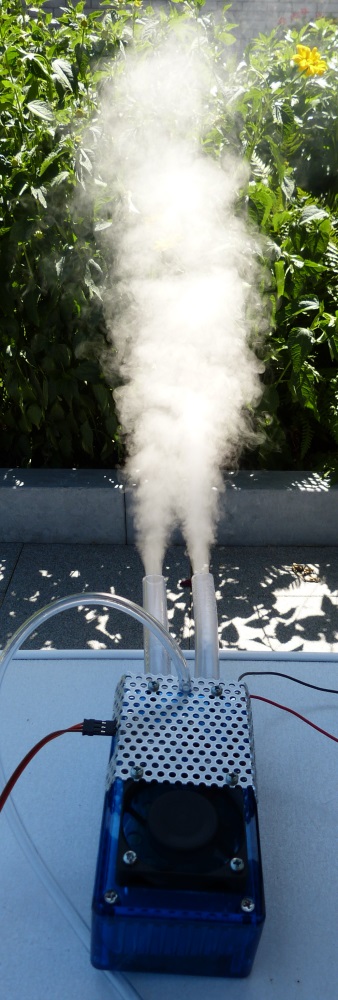

   Smoker in operation          Scope of delivery (Shown: Plastic version, RtR)


Metal version, pre built (RtR)



This option  realizes an absolute realistic exhaust simulation. Smoke volume and smoke speed depends on the model state. When the engine is shut down, no smoke exits the exhaust. During starting the engine, a large volume of smoke is blown out the exhaust.

Delivery includes2x30cm smoke tube (inner/outer diamter: 10/14mm), refill tube, 225ml Smoke oil and refilling syringe (see picture above).
The smoker is available with transparent plastic or aluminium housing, each in two sizes and three variants
Advantage transparent housing: Internal installations can be visually inspected
Advantage metal housing:         Mechnically very robust

Prices:

1. Pre built and tested (RtR):
Plastic housing:
      Standard size: 169 Euro         Large size: 179 Euro
Metal housing:
      Standard size: 179 Euro         Large size: 189 Euro


2. Complete kit:
All necessary items for completing the smoker are include. The electronic controller is fully tested.
The mechanical and electrical installation must be done by your own!
Installation description and paper drilling jig is included.
Plastic housing:     Standard size: 99 Euro         Large size: 109 Euro
Metal housing:
    Standard size: 105 Euro         Large size: 115 Euro


3. “Base” kit:
This kit does NOT contain the electronic controller but all the rest.
Powering of the heaters + fan must be realized individually (f.e. RC switching units)
Plastic housing:     Standard size: 59 Euro         Large size: 69 Euro
Metal housing:
    Standard size: 65 Euro         Large size: 75 Euro



Necessary order informations:
1. Desired version (Material and size)

If prebuild version ordering:
2. Number and orientation of smoke exits (f.e. 2x vertically)
3. Operation voltage (f.e. 12V lead battery)



Manuals:
Operation manual     Building instruction PLASTIC housing         Building instruction METAL housing





Accessory Oil smoker:

Smoke oil SR24 (best in various model train tests)



















225ccm bottle: 6 Euro                                                  Large 1000cmm bottle: 15 Euro
